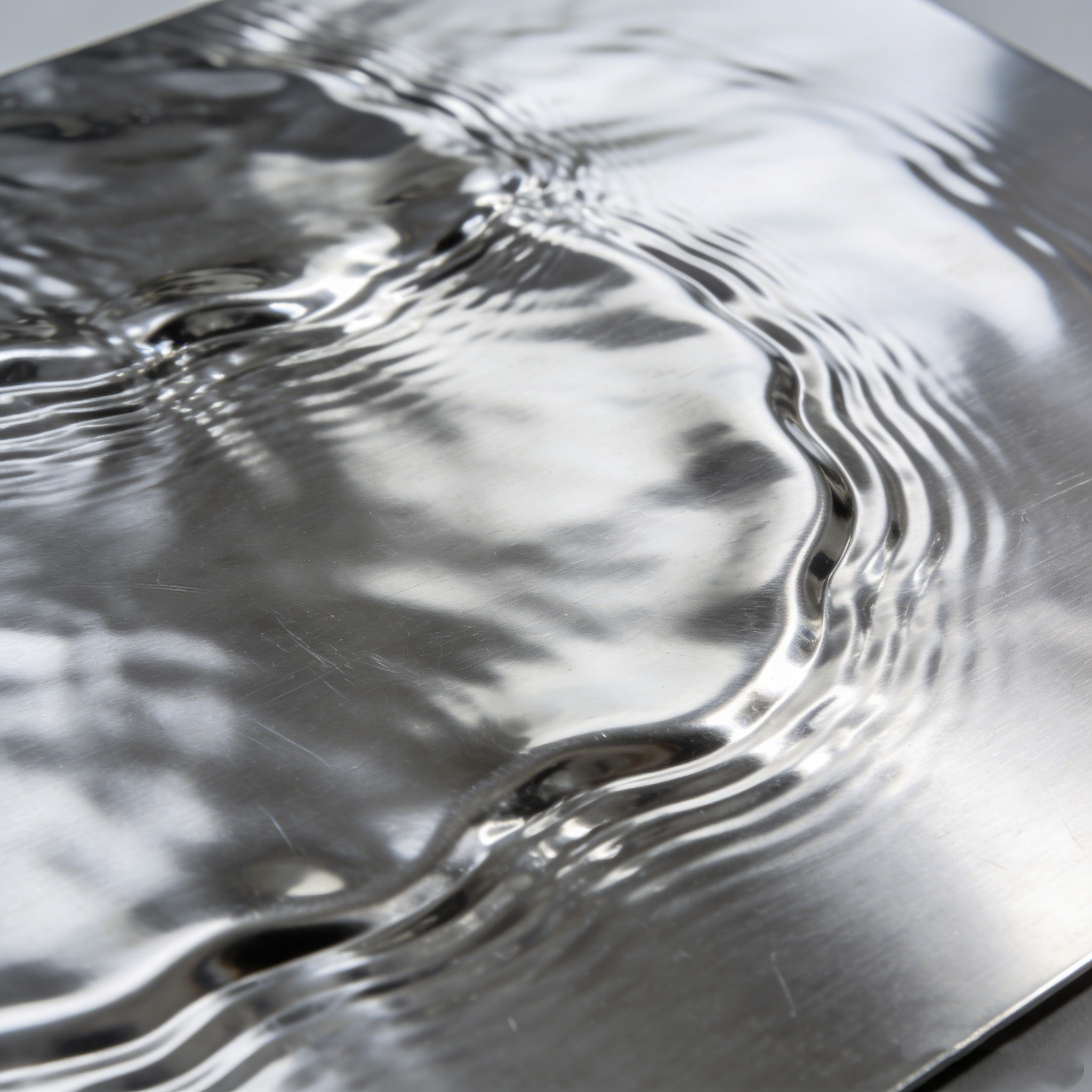

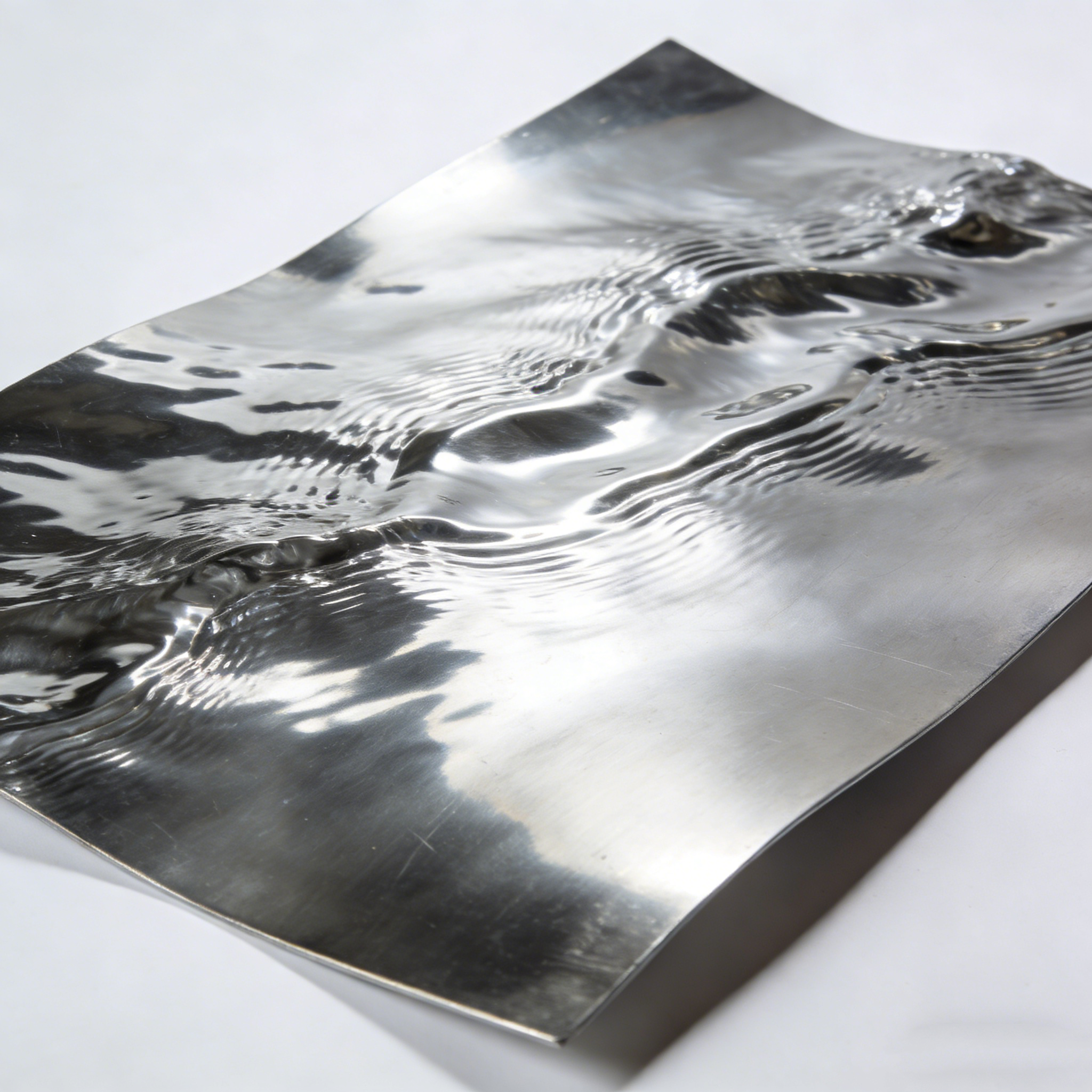

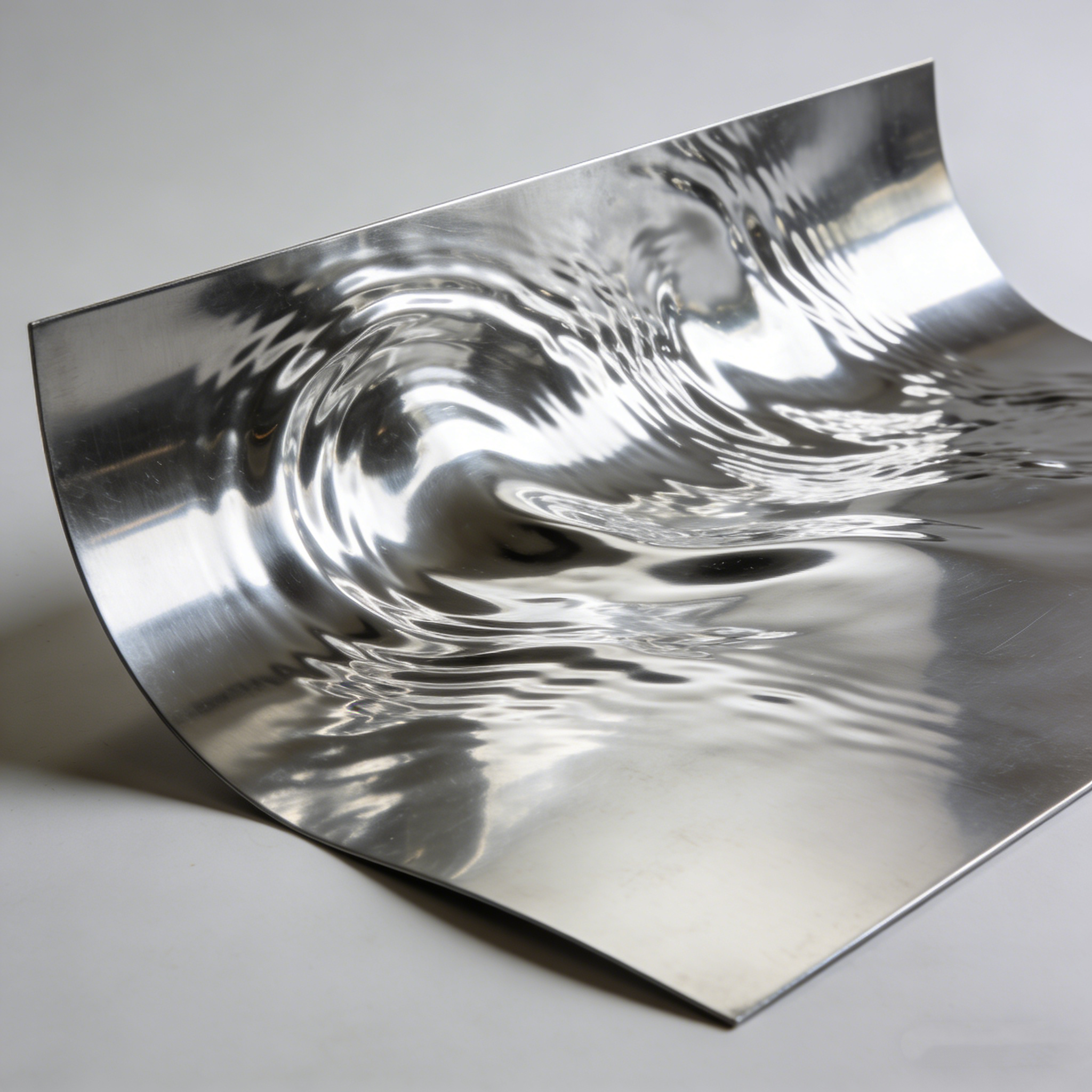

Large Ripple Water Wave Stainless Steel Sheet

  • Bold wave pattern for maximum visual impact under lighting

  • Ideal for feature walls, lobbies, and signature architectural elements

  • Available in 304/316 with mirror, brushed, and PVD color finishes


3) TDK

Large Ripple Water Wave Stainless Steel Sheet

Bold 3D Wave Texture for Statement Architecture & Luxury Interiors
Large ripple (big wave) water wave stainless steel sheets feature wide, pronounced wave formations designed to create dramatic light reflection and strong visual depth. This pattern is commonly used for signature feature walls, lobby installations, and high-end retail spaces.

  • Maximum visual impact with wide, bold wave structure
  • Ideal for statement areas such as lobbies, feature walls, and branded interiors
  • Multiple finishes including mirror, hairline, and PVD colors

Key Procurement Specifications

Specification Details
Pattern Type Large Ripple / Big Wave Water Wave (wide wave spacing, strong 3D effect)
Material Grades 304 / 316 Stainless Steel (201 available for indoor economy projects)
Recommended Thickness 1.0 – 2.5 mm (common: 1.2 / 1.5 / 2.0 mm)
Standard Sheet Sizes 1219×2438 mm (4×8 ft) / 1219×3048 mm (4×10 ft)
Finishes Mirror (8K), Hairline (HL), PVD Color, Anti-Fingerprint (optional)
Protection Film PVC protective film available (laser-friendly option upon request)
Customization Cut-to-size, wave intensity, finish/color selection, edge finishing available

Why Choose Large Ripple (Big Wave)

Signature Visual Effect

Large ripple sheets are designed to be seen. The wide wave structure creates strong highlights and shadows, making it ideal for high-visibility interior zones and premium architectural statements.

Strong Light-Play Under Spotlights

Under directional lighting, the wave peaks produce dramatic reflections. For best results, we recommend using sample panels to confirm the intended visual effect on site.

Better Suited for Feature Areas than Continuous Walls

Because of the bold pattern, large ripple is often used on feature walls, lobby accents, columns, and decorative zones rather than long continuous runs—unless the layout is carefully planned.


Technical Parameters

Parameter Typical Range Buyer Notes
Ripple Depth 0.8 – 2.0 mm Deeper waves create stronger visual depth; confirm with sample for approval
Wave Pitch Wide spacing Best for statement areas; layout planning helps reduce visible seam interruption
Back Surface Flat (standard) / reinforced optional Reinforcement may support certain mounting systems
Processing Method Embossed / stamped Stable production for project supply; sample approval recommended

Finish Options

Finish Effect Recommended Use
Mirror (8K) Strong highlight reflections and bold visual depth Luxury lobbies, feature walls, statement areas
Hairline (HL) More controlled glare, practical metallic texture Columns, decorative zones, high-traffic interiors
PVD Color Gold / Rose Gold / Black / Champagne / Bronze Retail branding, hospitality accents, premium trims
Anti-Fingerprint (Optional) Reduced smudging for touch-prone applications Public interiors and elevator surroundings

Typical Applications

  • Hotel lobbies and reception feature walls
  • Luxury retail interiors and branded spaces
  • Architectural statement panels and art walls
  • Decorative columns and accent cladding
  • High-end ceilings and soffits (project-based)

Packaging & Shipping

Item Details
Surface Protection PVC film + corner protection available
Export Packaging Wooden pallet or export wooden case (seaworthy)
Shipping Options Sea freight / Air freight
Trade Terms EXW, FOB, CIF, CFR, DDP

FAQ

1) Is large ripple suitable for long continuous wall runs?

Large ripple is typically best for feature areas due to its bold visual character. For long walls, layout planning and sample confirmation are recommended to ensure seam alignment and desired appearance.

2) Which thickness is recommended for large ripple sheets?

For most architectural installations, 1.2–2.0 mm is commonly selected. The optimal thickness depends on mounting structure, panel size, and fabrication requirements.

3) Should I choose mirror or hairline finish?

Mirror (8K) maximizes the wave highlight effect, while hairline offers a more practical and controlled glare. Many commercial projects choose hairline for high-traffic areas.

4) Can you provide matching sheets for the same project?

Yes. For project-based supply, we can support batch production and packaging to help keep consistency. We recommend approving samples prior to mass production.

5) Do you offer samples and custom colors?

Yes. Samples are available, and PVD color options can be provided for design approval.


Contact Voyage Metal

For pricing, lead time, samples, or custom requirements:

Website: www.voyagemetal.com
Email: [email protected]
