Mill Finish 7475 Extruded Aluminum Alloy Pipe

Aluminum pipe is a type of non-ferrous metal pipe. It refers to a metal tubular material that is extruded from pure aluminum or aluminum alloy and is hollow along its entire longitudinal length.

Product general information

Product Name:	7475 Aluminum Pipe	Thickness:	0.5mm-150mm or as the customer’s request
OD:	2mm-2500mm or as the customer’s request	Length:	3000mm, or custom made
Service:	Cutting, Anodizing, Custom-made.	Technique:	Cold Drawn, extruded
Package:	Export wooden pallets/cases	Origin:	Shanghai, China

Commercial terms of products

Minimum Order Quantity:	1 Ton
Delivery Time:	7-30 days
Payment Terms:	50% TT deposit, balance before shipment
Supply Ability:	Sea Transport, Land Transport, etc

Other names：7475 Aluminum Alloy Tube

Description:

Aluminum pipe is a type of non-ferrous metal pipe. It refers to a metal tubular material that is extruded from pure aluminum or aluminum alloy and is hollow along its entire longitudinal length. There are seamless aluminum tubes and ordinary extruded tubes. It has the characteristics of light weight, corrosion resistance and high strength. Widely used in construction, automobile manufacturing, aerospace, electronic appliances and other fields.

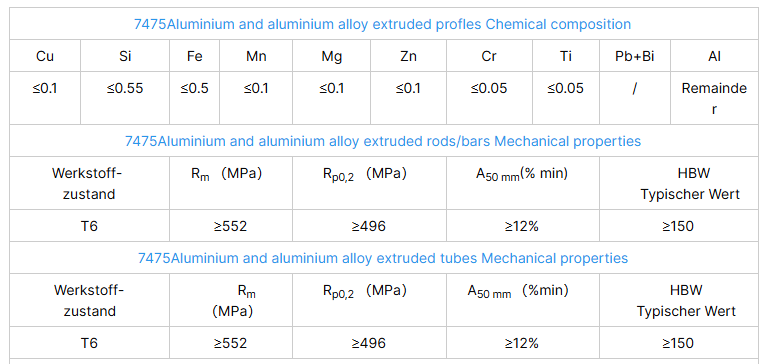

图片 1.png

HOW TO MEASURE:

OD (A) X Wall (B) X ID (C) X Length
* Dimensions in Inches

Competitive Advantage:

Ultra-high strength and excellent mechanical properties: After T61 heat treatment, its tensile strength can reach more than 620MPa, and its yield strength exceeds 560MPa, which is an ultra-high strength level among aluminum alloys. This high strength enables it to withstand extremely large loads, far exceeding the load-bearing capacity of most aluminum alloys, and is particularly suitable for scenes with extreme requirements for structural strength.

Excellent fracture toughness:While having ultra-high strength, the fracture toughness of 7475 aluminum alloy is significantly better than that of some alloys in the same series (such as 7075), which means that it is not prone to brittle fracture when subjected to stress, has stronger resistance to crack propagation, and is safer and more reliable.

Good fatigue resistance: Under repeated alternating loads, 7475 aluminum alloy can maintain stable mechanical properties and high fatigue strength, which makes it perform well in components that are subjected to dynamic loads such as vibration and impact for a long time.

Excellent processing performance: Despite its extremely high strength, 7475 aluminum alloy can still be processed by rolling, forging, etc., and can be made into plates, thick plates, etc., and the surface finish after processing is good, which is suitable for the manufacture of precision parts.

Suitable for low temperature environment application: Under low temperature conditions, the strength and toughness of 7475 aluminum alloy will not only not decrease, but will be slightly improved, which can adapt to the working requirements of extreme low temperature environment.

Applications:

With its ultra-high strength and excellent toughness, 7475 aluminum alloy plays a key role in fields with extreme requirements for material performance. In the aerospace industry, it is an ideal material for manufacturing core structural parts such as wing skins and fuselage reinforcement frames of large aircraft. Its ultra-high tensile strength can easily cope with the huge loads during flight, providing a solid guarantee for flight safety.

In the aerospace field, 7475 aluminum alloy is often used in lightweight load-bearing components of satellites and launch vehicles. Its excellent fatigue resistance can withstand continuous vibration and temperature changes during launch and in-orbit operation. At the same time, the material density is low, which can effectively reduce the overall weight of the spacecraft and improve propulsion efficiency.

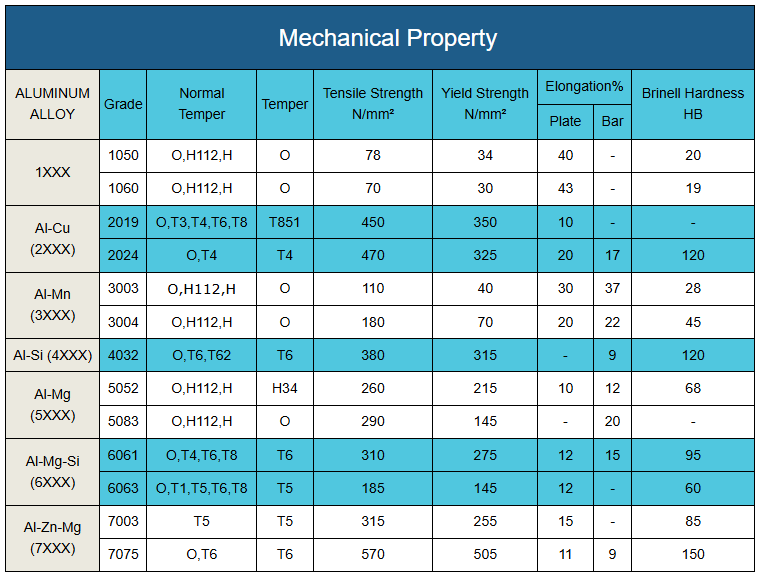

Aluminum Series

图片 2.png
