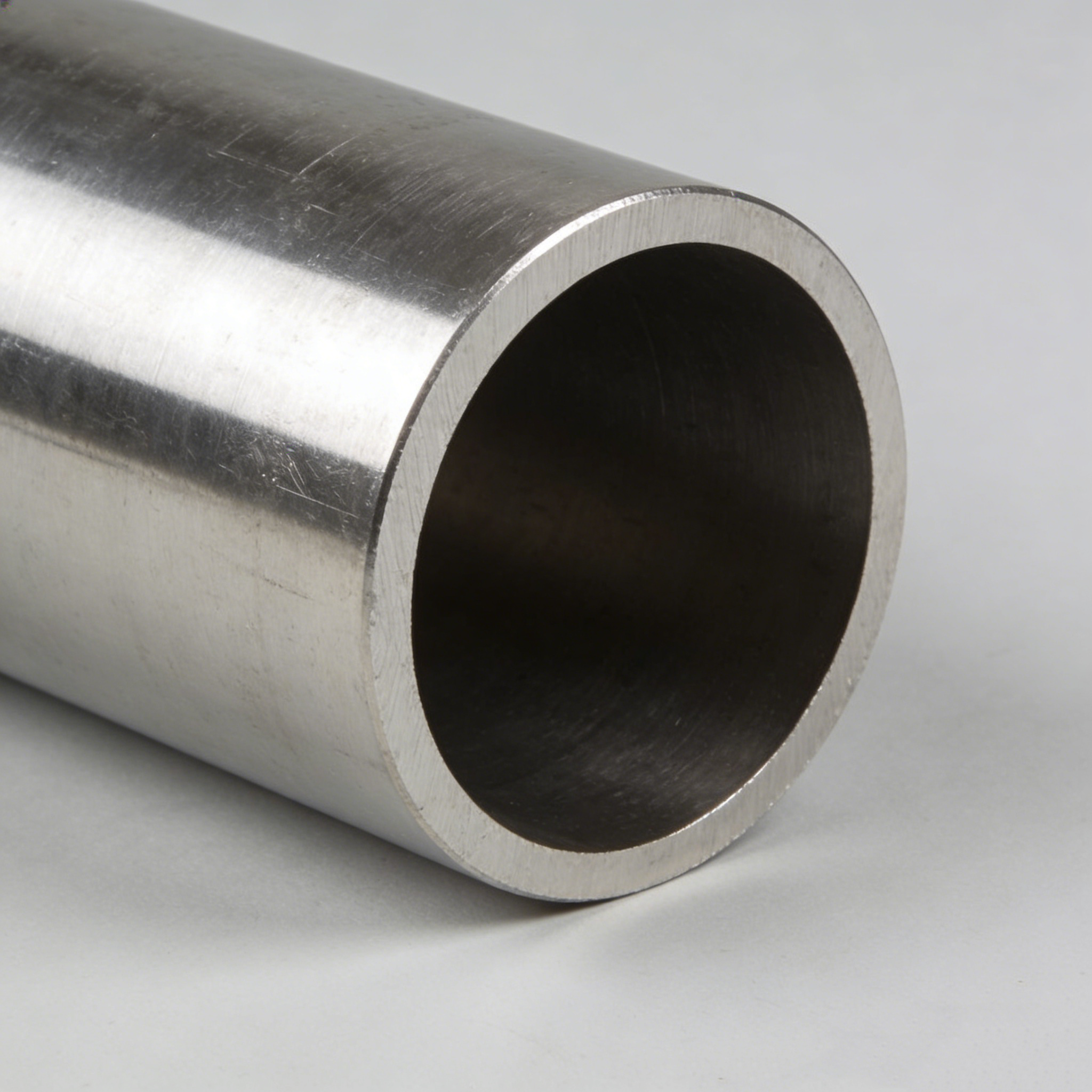

Nickel 200 (UNS N02200) Pure Nickel Pipe
Nickel 200 pipe is a commercially pure wrought nickel (99.6% Ni) offering excellent resistance to corrosion in alkaline and neutral environments. It provides outstanding thermal and electrical conductivity, good mechanical properties, and reliable performance across a wide temperature range.
Key Features
- ✔ High purity (minimum 99.6% nickel)
- ✔ Excellent resistance to caustic alkalis
- ✔ Good mechanical strength and ductility
- ✔ Superior thermal and electrical conductivity
- ✔ Excellent resistance to dry fluorine and hydrogen chloride gas
Technical Specifications
| Item |
Details |
| Grade |
Nickel 200 |
| UNS |
N02200 |
| Werkstoff No. |
2.4066 |
| Standards |
ASTM B161 / ASTM B725 / ASTM B751 / ASME SB161 |
| Pipe Type |
Seamless / Welded |
| Outer Diameter |
6mm – 610mm |
| Wall Thickness |
0.8mm – 40mm |
| Length |
Random / Fixed / Customized |
| Surface |
Annealed / Pickled / Polished |
Typical Chemical Composition (%)
| Ni (Min) |
Cu |
Fe |
Mn |
C (Max) |
| 99.6 |
0.25 |
0.40 |
0.35 |
0.15 |
Main Applications
Chemical Processing
Used in caustic soda production, heat exchangers, and handling equipment exposed to strong alkalis.
Food & Pharmaceutical Industry
Suitable for high-purity environments requiring excellent corrosion resistance and cleanability.
Aerospace & Electronics
Applied in components requiring high thermal and electrical conductivity.
Marine & Industrial Equipment
Provides reliable corrosion resistance in neutral and mildly reducing environments.
Why Choose Voyage Metal?
- ✔ Strict raw material traceability
- ✔ PMI testing and full inspection before shipment
- ✔ EN 10204 3.1 / 3.2 certification available
- ✔ Customized production based on drawings
- ✔ Global export packaging and logistics support
Frequently Asked Questions
1. What is the difference between Nickel 200 and Nickel 201?
Nickel 201 has lower carbon content, making it more suitable for high-temperature applications to avoid graphite formation.
2. Is Nickel 200 resistant to sulfuric acid?
Nickel 200 performs well in certain reducing acids, but for strong oxidizing acids, other nickel alloys may be recommended.
3. Can Nickel 200 pipe be welded?
Yes, Nickel 200 offers good weldability using standard welding techniques for nickel alloys.
4. Do you provide third-party inspection?
Yes, third-party inspections such as SGS, BV, or TUV can be arranged upon request.
