Uniform magnetic properties in all directions for high-efficiency rotating machines—ideal for EV motors, compressors, generators, and industrial drives.
Non-Oriented Electrical Steel (also called Non-Oriented Silicon Steel or Cold Rolled Non-Oriented Electrical Steel) is a silicon steel designed for applications where the magnetic field rotates—such as electric motors, generators, compressors, and many industrial electrical machines. Unlike grain-oriented grades, non-oriented electrical steel provides uniform magnetic properties in all directions, which is essential for dynamic, high-speed rotating equipment.
✅ Designed for: Motors, Generators, Compressors, HVAC, EV Traction Systems
✅ Thickness:0.35 mm / 0.50 mm / 0.65 mm
🌐 Website: www.voyagemetal.com | ✉ Email: [email protected]
Our non-oriented electrical steel is produced with advanced cold rolling and annealing processes to optimize grain structure and magnetic properties. Products are supplied to support global markets and can be delivered as fully-processed or semi-processed material.
Standards & Documentation: IEC & ASTM compliant; full test reports and certifications available (MTC upon request).
Services: Slitting, cutting, insulation coating, and export packaging solutions.

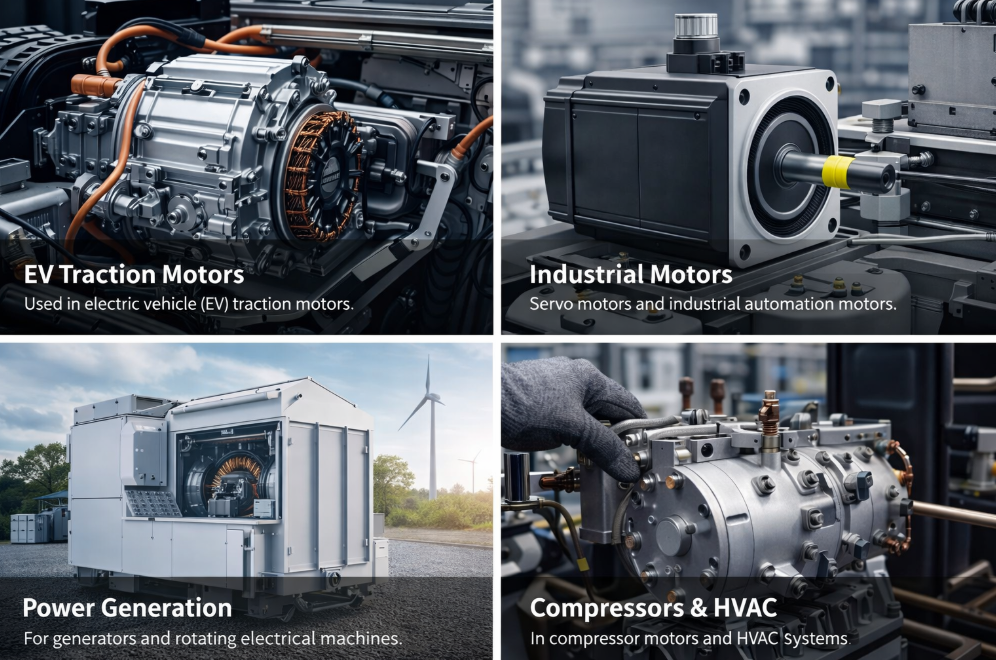

Non-oriented electrical steel is widely used in rotating electrical machines and related components:
| Industry / Field | Typical Uses |
|---|---|
| Automotive & EV | EV traction motors, auxiliary motors, e-compressors |
| Industrial Automation | Servo/drive motors, general industrial motors, precision motors |
| HVAC & Compressors | Compressor motors, fan motors, pumps |
| Power Generation | Generators, rotating machines, auxiliary power units |
| Electrical Devices | Small transformers, stabilizers, welding transformers, reactors |
The table below is a practical reference for matching common equipment types with grade ranges. (Final selection depends on your efficiency target, loss requirement, and processing conditions.)
| Equipment / Use | Suggested Grade Ranges |
|---|---|
| Large motor | A230–400 |
| Medium-sized motor | A230–400; A400–700; AH230–470 |
| Compressor motor (HVAC / refrigeration) | A230–400; A400–700; A800–1300; AH230–470; AH600–1000; AR300–350 |
| General motor | A230–400; A400–700; A800–1300; AH230–470; AH600–1000; AR300–350 |
| Small precision motor | A230–400; A400–700; A800–1300; AH230–470; AR300–350 |
| Electric vehicle motors | A230–400; AH230–470; AR300–350 |
| Small power supply transformer | A230–400; A400–700; A800–1300; AH230–470; AH600–1000; AR300–350 |
| Instrument transformer | A230–400 |
| Reactor & magnetic amplifier | A230–400 |
| Power switch | A230–400 |
| Welding transformer | A400–700; A800–1300; AH600–1000 |
| Voltage stabilizer | A230–400; A400–700; A800–1300; AH230–470; AH600–1000; AR300–350 |
| Magnetic seal | A230–400; A400–700 |
| Accelerator electromagnet | A400–700; AH230–470 |
Different coating types support different punching/slitting, bonding, and insulation requirements. We can recommend the right option based on your lamination and assembly process.
| Type | Orientation | Composition | Coating Thickness (μm/face) | Remarks |
|---|---|---|---|---|
| A | Non-oriented | Semi-organic | ~0.3 | — |
| H | Non-oriented | Semi-organic | ~0.7 | — |
| K | Non-oriented | Semi-organic | 0.3–1.0 | Eco-friendly |
| M | Non-oriented | Semi-organic | 0.8–1.5 | Eco-friendly |
| J (C5) | Non-oriented | Semi-organic | 2–4 | Eco-friendly |
| L (C6) | Non-oriented | Semi-organic | 4–9 | Eco-friendly / Self-bonding |
| Z | Non-oriented | Organic | 3–9 | Eco-friendly |
| S | Non-oriented | Inorganic | ~3 | — |
⭐ Fast RFQ: Please send your thickness, width, grade target, coating type, quantity, and destination. We’ll reply with price & lead time.
It is mainly used in rotating electrical machines where the magnetic field rotates, such as motors, generators, compressors, pumps, HVAC equipment, and EV traction systems.
CRGO (grain-oriented) is optimized for magnetic flux in one direction and is used mostly for transformer cores. CRNGO/CRNO (non-oriented) provides uniform properties in all directions, making it ideal for motors and generators.
Common supply thicknesses include 0.35 mm, 0.50 mm, and 0.65 mm. If you need a different thickness or special tolerance, send an RFQ for confirmation.
Yes. We provide slitting, cutting, and multiple insulation coating options. We can recommend the best coating type based on your punching, stacking, and bonding process.
Yes. Products are supplied in line with IEC and ASTM quality requirements, with full test reports and certification documentation available for overseas shipments.
Please share: thickness, width (or slit widths), coil ID/OD if required, coating type, quantity, target magnetic/loss requirement (if applicable), and destination port/address.
